113T10416

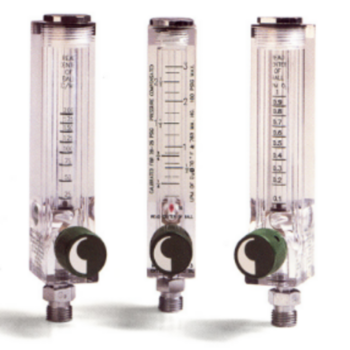

Timeter classic neonatal flowmeters
- Size - Classic 200 | Max Pressure - 100 psi | Min. Flush Flow - 1 LPM
- Application - For extremely low flow situations.(25-200 cc/min flow range). Excellent accuracy required in perinatal & neonatal applications
- Accuracy - ± 10% of full scale | Calibration - 25 cc/min lines
113TB8211
Timeter classic neonatal flowmeters
- Size - Classic 1000 | Max Pressure - 100 psi | Min. Flush Flow - 8 LPM
- Application - For very low flow situations where extreme accuracy is critical (1/10 1 LPM flow range
- Accuracy - ± 5% of full scale | Calibration - 1/10 LPM line
113TB860
Timeter classic neonatal flowmeters
- Size - Classic 0-3 | Max Pressure - 100 psi | Min. Flush Flow - 8.5 LPM
- Application - For low flow situations where accuracy is important. (1/8 3 LPM flow range) Identical back scale.
- Accuracy - ± 1/8 LPM between 1/8 & 2 LPM ± 1/4 LPM between 2-1/4 & 3 LPM | Calibration - 1/8 LPM lines from 1/8 to 1 LPM ¼ LPM lines from 1-3 LPM
113TB10
Timeter classic neonatal flowmeters
- Size - Classic 0-16w/ 1/8” FNPT | Max Pressure - 100 psi | Min. Flush Flow - 8.5 LPM
- Application - General purpose. High & low flow applications. (1/4-16 LPM flow range) Identical back scale
- Accuracy - ± 1/8 LPM between ¼ & 2 LPM ± 1/4 LPM between 2-1/2 & 12 LPM ± 1/2 LPM between 13 & 16 LPM | Calibration - ¼ LPM lines from ¼ to 2 LPM. ½ LPM lines from 2 to 4 LPM. 1 liter lines from 4 to 16 LPM
113TB30
Timeter classic neonatal flowmeters
- Size - Classic 0-75 | Max Pressure - 100 psi | Min. Flush Flow - 8.5 LPM
- Application - Where high flow of oxygen is necessary. IMV set-ups & CPAP devices.(5-75 LPM flow range)
- Accuracy - / | Calibration - 25 cc/min lines
113TB20
Timeter classic neonatal flowmeters
- Size - Classic A-16 Air | Max Pressure - 100 psi | Min. Flush Flow - 8.5 LPM
- Application - General Purpose (1/2-16 LPM flow range)
- Accuracy - / | Calibration - ½ LPM lines from ½ to 4 LPM. 1 liter lines from 4 to 16 LPM
113TB40
Timeter classic neonatal flowmeters
- Size - Classic A-75 Air | Max Pressure - 100 psi | Min. Flush Flow - 8.5 LPM
- Application - Where high flow of oxygen is necessary. IMV set-ups & CPAP devices. (5-75 LPM flow range)
- Accuracy - / | Calibration - 5 LPM lines from 5 to 75 LPM
